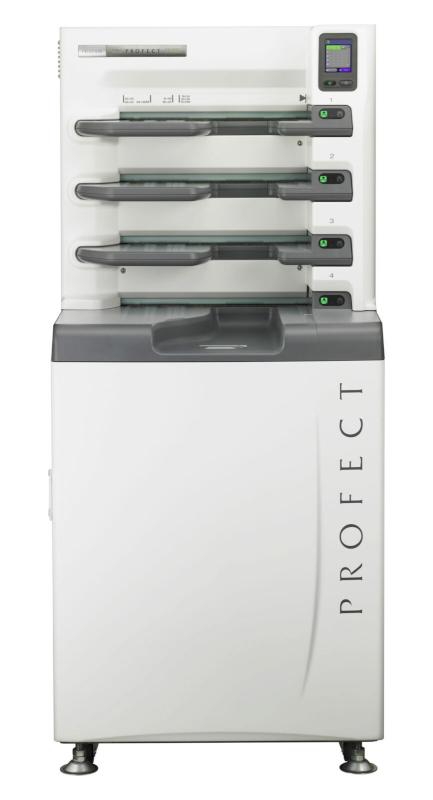

Fujifilm Profect CS Plus
The high-throughput FCR reader capable of precise 50µm resolution for mammography with a dual-side reading
The Fujifilm FCR PROFECT CS Plus is a high-throughput computed radiography (CR) system designed for mammography and other medical imaging applications. It features dual-side reading technology, enabling higher detective quantum efficiency (DQE) by capturing emissions from both sides of the imaging plate (IP). The system boasts a processing capacity of 120 IPs per hour for standard 14" x 17" (35 x 43cm) exposures and can also handle mammography and long-view exposures, including pantomography.
Description
Key features and specifications of the FCR PROFECT CS Plus include:
-
High-speed processing:
Achieves a processing speed of 120 IPs/hr for 14" x 17" exposures, reducing examination time.
-

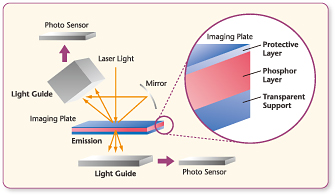

Dual-side reading:
Increases DQE for improved image quality, especially with low-dose exposures.
-
High-resolution imaging:
Offers 20 pixel/mm sampling pitch for versatile diagnostic applications.
-
Multi-purpose functionality:

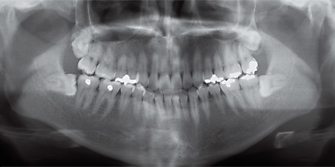

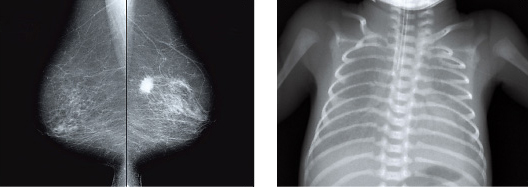

Supports various exposure types, including mammography, standard, and long-view exposures, as well as pantomography.
-
Image processing:
Incorporates Fujifilm's Image Intelligence™ technology for optimized image quality.
-
Workflow efficiency:
Features a 4-cassette stacker and user-friendly console to enhance workflow.
-
Mammography support:
Includes optional PEM (Pattern Enhancement Processing) for enhanced visibility of micro-calcifications in mammograms.
-
Spatial resolution:
Supports 5, 10, and 20 pixels/mm reading specifications.
-
Dimensions and weight:
655 × 740 × 1480mm (26" × 29" × 58") and 270kg (595lbs).
-
Environmental conditions:
Operating temperature of 15-30°C and humidity of 40-80%RH (no dew condensation).
Features
-

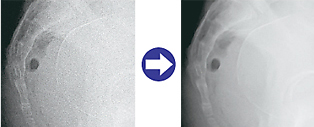

[FNC] Flexible Noise Control
Reduced noise on x-ray image
Provides a non- grainy image by mainly isolating and suppressing the noise for the signal.
-

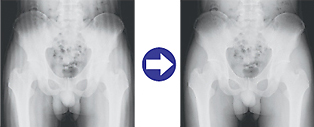

[GPR] Grid Pattern Removal
X-ray of pelvic region with Grid Pattern removed
Removes the stationary grid patterns thus preventing Moiré from being generated resulting in easier diagnosis.
-
[MFP*2] Multi-Frequency Processing
Enhanced X-ray image of spine
Enhances FCR images. All diagnostic scopes will be enhanced except for noise.
-
[PEM] Pattern Enhancement Processing for Mammography
As an optional software specifically developed for mammographic imaging, PEM enhancement processing improves the conspicuity of micro-calcifications.
